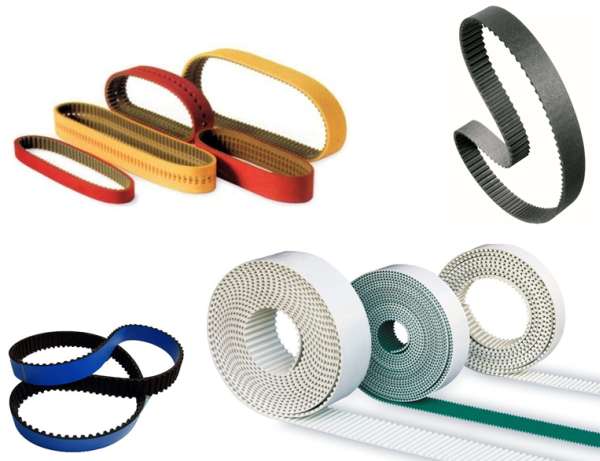

The belt you require can be delivered on request for competitive prices !

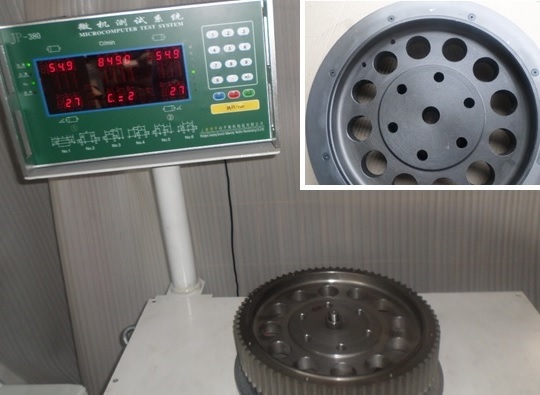

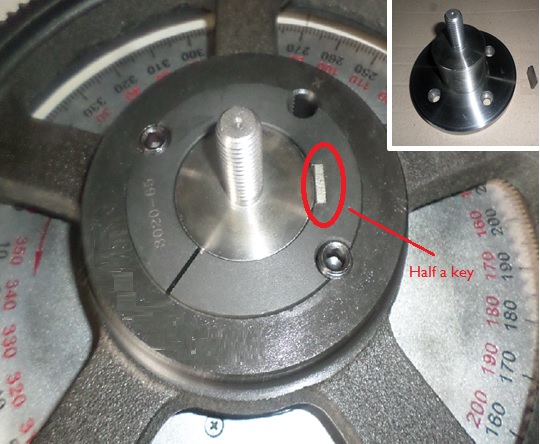

We can balance G6.3 on high speed with half a key.
- 25 years of production experience
- All our pulleys over Ø300mm are statically balanced
- Annual turnover of our factory $ 8 mln
- Custom made specials
- Special surface treatments
- Both standard or hard anodizing possibilities for aluminium pulleys
- T and AT pulleys with "0" tooth gap (zero backlash) or "SE" tooth gap (reduced backlash)

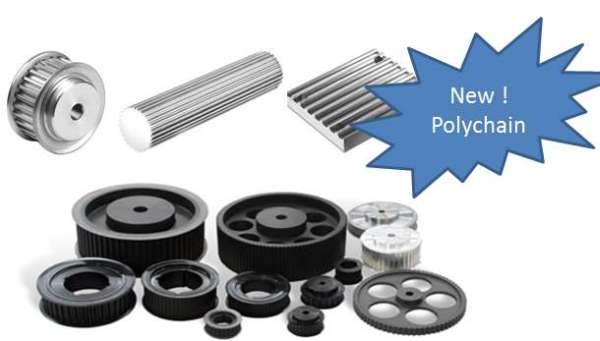

| Tooth shapes | Tooth classification | Material | Size range |
|
Poly Chain GT-MR STD, HTD, RPP XL, L, H, XH T, AT |
Standard quality Superior quality |
Aluminium, RoHS compliant, steel flanges, zinc plated Cast iron (GG25). phosphated, steel flanges phosphated Steel blackened, steel flanges blackened Stainles steel, flanges on request stainless steel |
Min. O.D. Ø 10mm Max. O.D. Ø 1100mm Teeth: 9 till 216 |
Our flanges are extremely tight becasue of our fine tolerances and know how. The flanges are fixed over the entire circumference with high pressure.
We have a wide range of standard flanges available including aluminium anodized flanges. On request we can screw the flanges according to the drawing below and secure the bolts with loctite according to your specifications.
